TECHNICAL PARAMETER：
This series of sanding machines are mainly designed for precise thickness sanding of workpieces. The accuracy after sanding is controlled within ±0.1mm.
It has a wide range of applications and can handle large amounts of sanding.
The frame is made by welding channel steel and steel plates. It is a heavy-duty and load-bearing body. It undergoes artificial aging or annealing treatment to enhance the stability of the body. Laser cutting of sheet materials ensures the accuracy of workpiece installation.

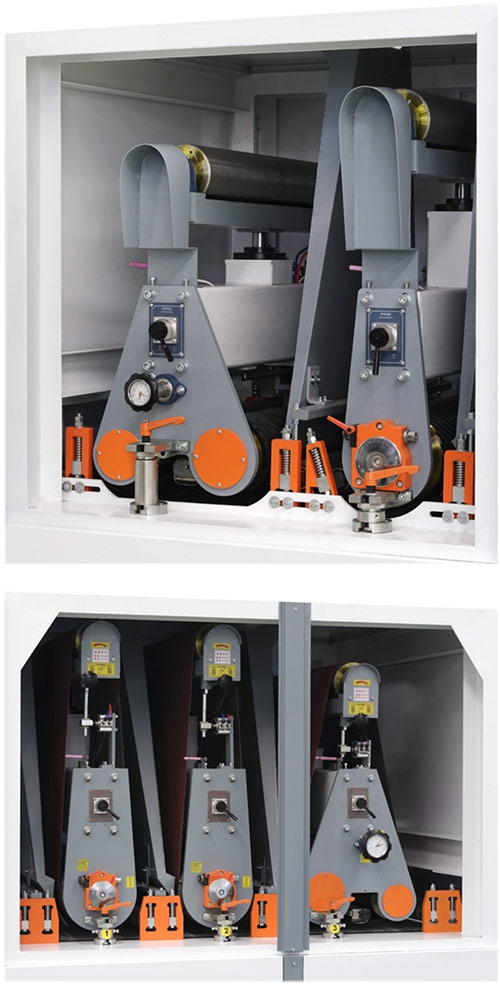

The fixed-thickness rollers are formed by welding a belt wheel and a roller body together. They are equipped with high-end maintenancefree bearings. The inner and outer surfaces of the rollers are processed, and they are adjusted with a high-precision dynamic balance equipment to ensure the stability of the rollers during highspeed operation.
It uses world-class high-end electrical components, which are durable.
This sanding machine is suitable for the sheet metal and home furnishing industries. It is widely applicable and easy to maintain.

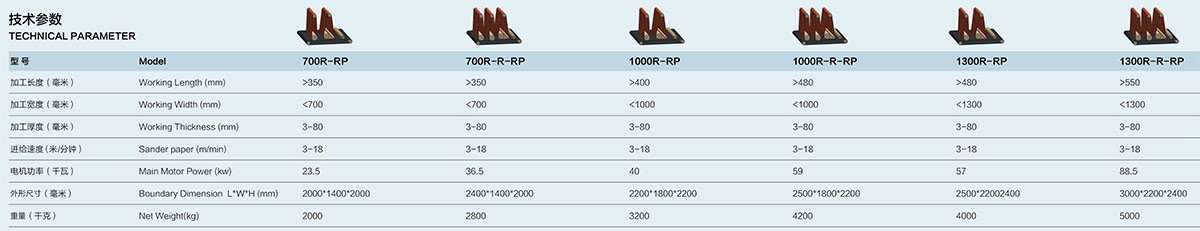

TECHNICAL PARAMETER：
| Model |  |
 |
 |
 |
 |
 |
| 700R-RP | 700R-R-RP | 1000R-RP | 1000R-R-RP | 1300R-RP | 1300R-R-RP | |
| Working Length（mm） | >350 | >350 | >400 | >480 | >480 | >550 |
| Working Width（mm） | <700 | <700 | <1000 | <1000 | <1300 | <1300 |
| Working Thickness（mm） | 3-80 | 3-80 | 3-80 | 3-80 | 3-80 | 3-80 |
| Sander paper（m/ min） | 3-18 | 3-18 | 3-18 | 3-18 | 3-18 | 3-18 |
| Main Motor Power（kw） | 23.5 | 36.5 | 40 | 59 | 57 | 88.5 |
| Boundary Dimension L*W*H（mm） | 2000*1400*2000 | 2400*1400*2000 | 2200*1800*2200 | 2500*1800*2200 | 2500*22002400 | 3000*2200*2400 |
| Net Weight（kg） | 2000 | 2800 | 3200 | 4200 | 4000 | 5000 |
