TECHNICAL PARAMETER

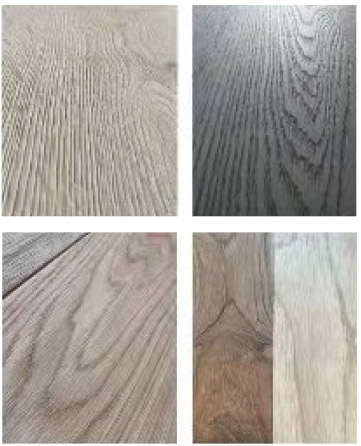

This machine is primarily used for surface embossing and linear brushing of flat panels such as flooring, furniture, veneer panels, wood-plastic composites, and building materials. Panels processed by this machine have a non-slip surface with a three-dimensional effect and pronounced wood grain texture.
Depending on the type of panel and desired texture, different machine models and configurations of brushing and polishing rollers can be selected.
TECHNICAL PARAMETER
| Model | 700-3 | 700-6 | 1000-3 | 1000-6 | 1300-3 | 1300-6 |
| Working Length | >300 | >300 | >300 | >300 | >300 | >300 |
| Working Width | <700 | <700 | <1000 | <1000 | <1300 | <1300 |
| Working Thickness | 3-120 | 3-120 | 3-120 | 3-120 | 3-120 | 3-120 |
| FeedingSpeed(m/min) | 3-18 | 3-18 | 3-18 | 3-18 | 3-18 | 3-18 |
| Total Power(kw) | 20 | 30 | 26 | 40 | 35 | 53 |
| Boundary Dimension(L*W*H) | 1400*2000*1400 | 1400*3600*1700 | 1900*2000*1500 | 1900*3600*1700 | 2700*2200*1600 | 2700*3600*1700 |
| Net Weight | 1800 | 3000 | 2400 | 3600 | 2700 | 4500 |
