TECHNICAL PARAMETER：

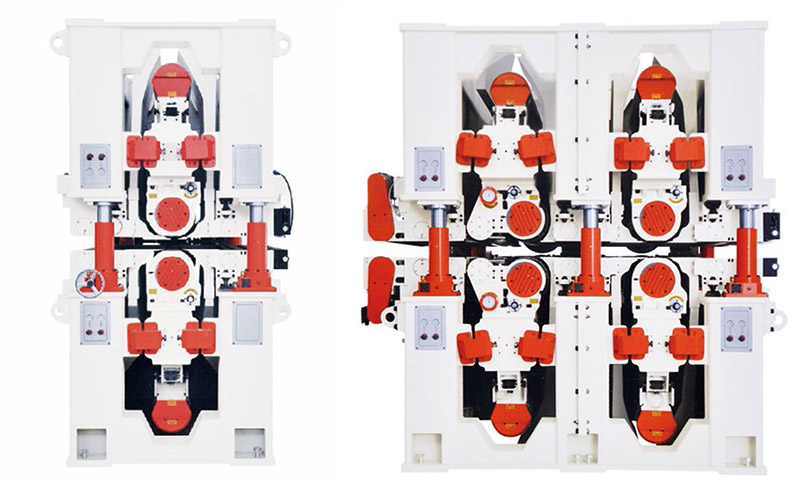

This kind of Sander does not limited by the original thickness, can sand by 2 sides. This machine has characters like: high precision (Tolerance is ±0.08mm), high quality, high efficiency(1 operation to complete the single side or double side and complete grinding), can used for thickness defining and perfect sanding of particle board, fret board, MDF, high pressure cover board, plywood, concrete cover plate, wooden plank and so on.
Reducer machine has double drive mode, feeding is stable and reliable, high efficiency.Transmission uses transmission links, has high stability.
Whole machine uses steel plate welding, solid structure, heavy weight, does not has vibration in operation.
Parts is from famous and import grand: Schneider electric, NSK bearing, Taiwan reducer, etc.
TECHNICAL PARAMETER：
| Model | DS5613 | DS5623 |
| Working Thickness(mm) | 3-90mm | 3-90mm |
| Working Length(mm) | >800mm | >800mm |
| Working Width(mm) | 200-1300mm | 200-1300mm |
| Main Motor Power(kw) | 90×2+75×2kw(75×2+55×2kw) | 90×2+75×2kw(75×2+55×2kw) |
| Feeding Motor(kw) | 15kw(11kw) | 11kw |
| Lift Motor(kw) | 2.2kw | 2.2kw |
| Net Weight(kg) | 14T | 26T |
